AFC simplified

Pre-load adjustment
Click the image to open in full size.
This will determine the off idle quantity of fuel injected before manifold pressure overcomes the spring pressure.

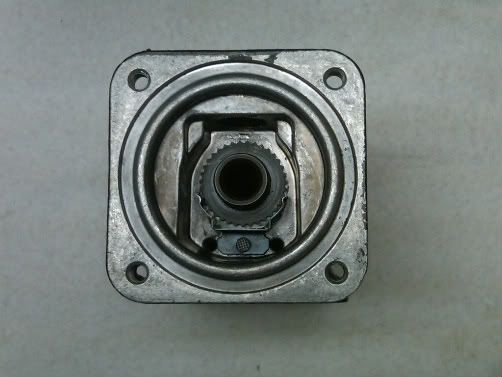

Starwheel
Click the image to open in full size.
Increases or decreases spring tension.

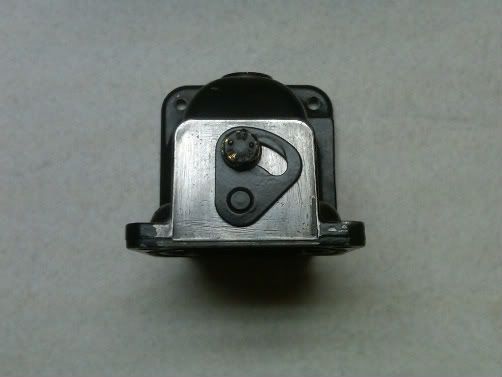

Lever height adjustment
Click the image to open in full size.
Eccentric movement, counter clockwise raises the lever, clockwise lowers the lever.

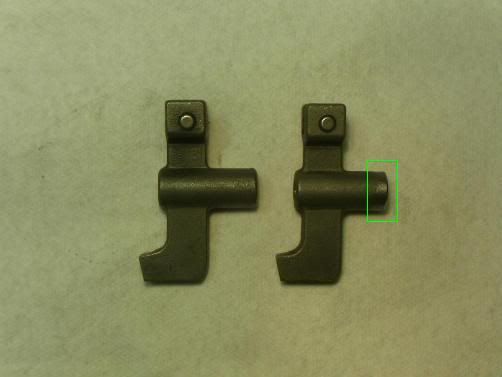

AFC lever
Click the image to open in full size.
Removing 0.100" from the marked area will provide full travel.
